The Wufi-Plus GUI

actual size

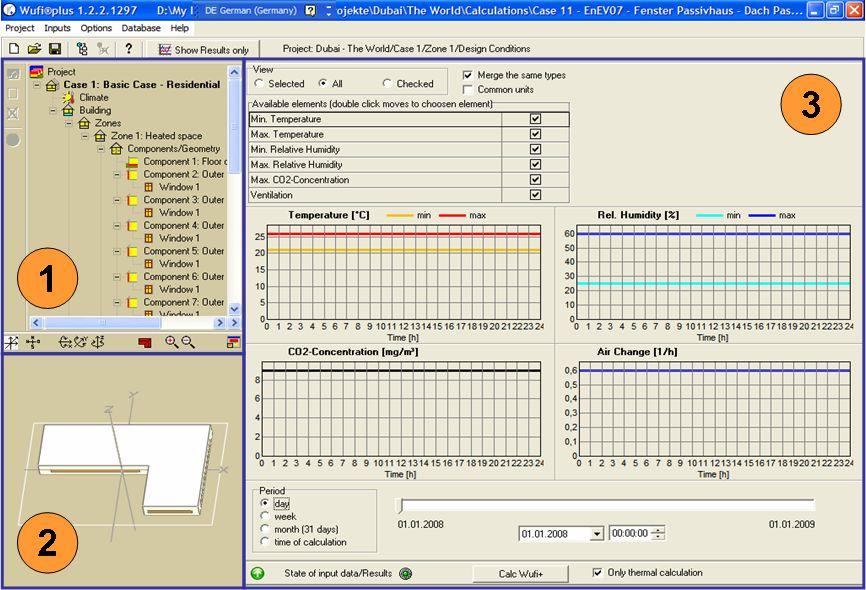

The Grahical User Interface of WUFI Plus is devided into three sections

1. Navigation Tree
2. Graphical Orientation
3. Input and Output dialogs

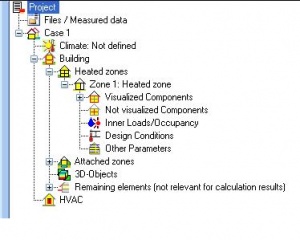

Navigation Tree

The Navigation Tree is a helpful intrument to navigate while editing the inputs. The breadcrumbs navigation allows a clear arranged presentation of the elements which are to define. The project is divided in Cases. In these cases are the elements climate and building.The building is divided further in zones and attached zones.
